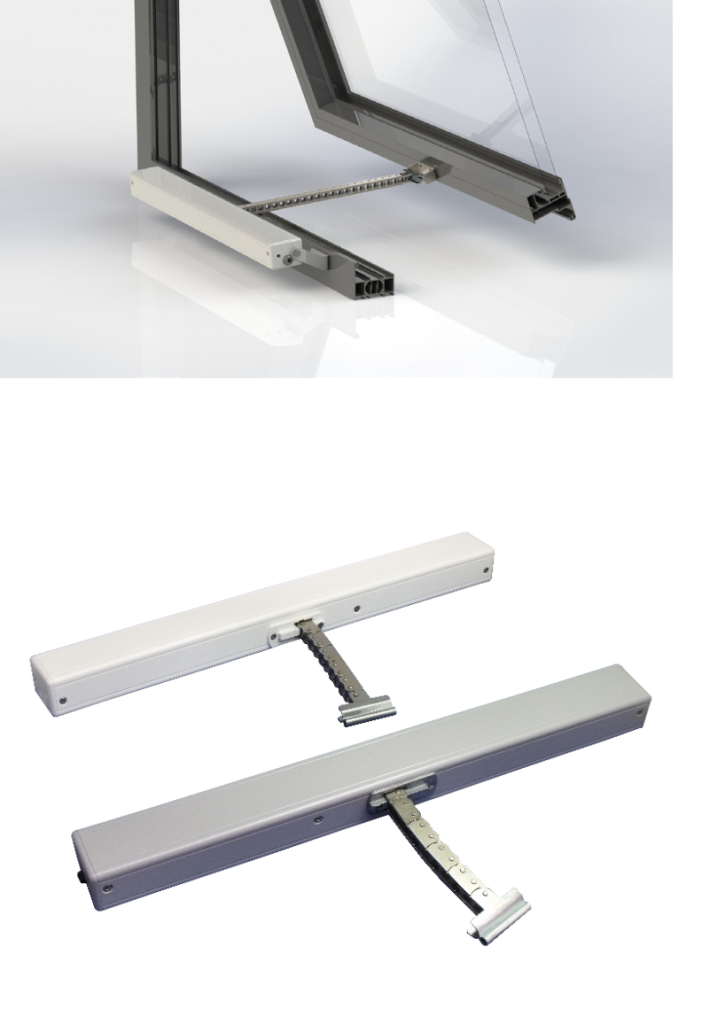

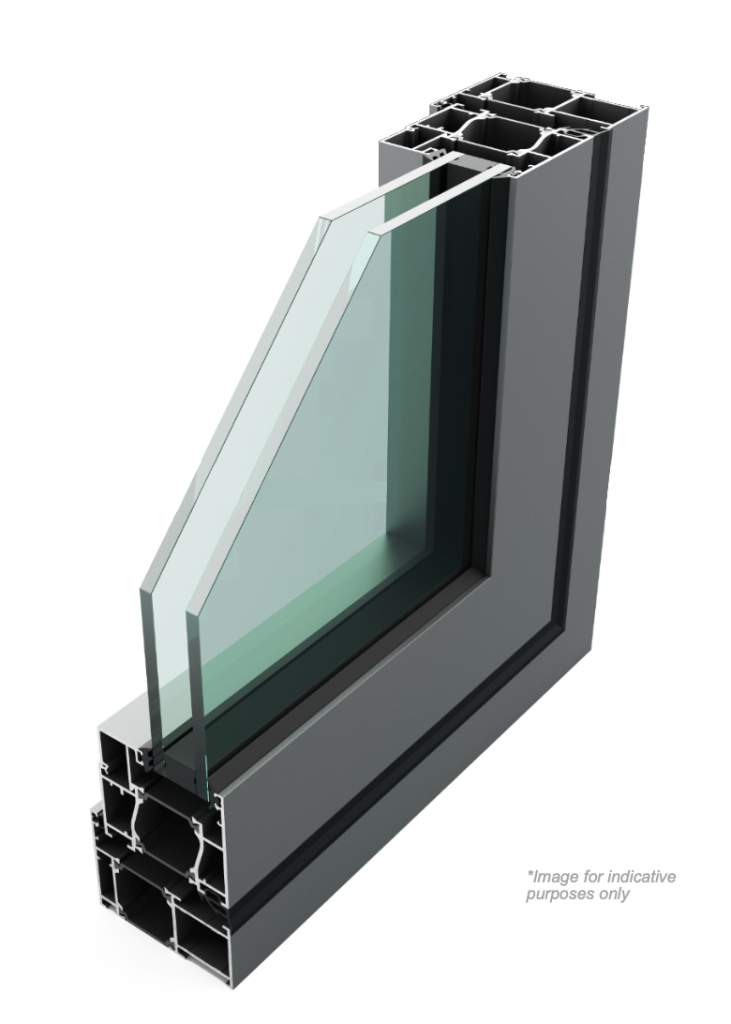

The SPW600 AOV window system has been designed to meet

current building regulations. This is a three chamber 75mm

polyamide window system with the option for easy thermal

inserts to improve thermal performance. It is capable of

accepting glazing up to 56mm thick.

Extruded aluminium is generally Aluminium Alloy 6060.T6/

T66, 6063.T6/T66, 6082.T6 to BS EN 755-9 and EN

12020-2.

• Polyamide thermal barriers are manufactured in accordance with PA66 GF25.
• The Gasketry is generally manufactured in accordance with BS ISO 3302-1.
• The fixings are generally A2 Stainless Steel screws.

SPW600 AOV window sections are available typically in three finishes.

• Polyester Powder Coating to BS EN 12206-1 Part 1 painted in house. Surface finished to a minimum of 40 microns standard, or enhanced to suit project requirements, in accordance with ISO 9001, ISO 14001 and ISO 45001.

• Anodised finishes are to BS3897 to a minimum of 25 microns (AA25), supplied in either satin or polished finish in a limited range of colours.

• Mill Finish.

SPW600 AOV is constructed using mitred corners, joined with crimped or mechanical cleats; alignment chevrons assist in clean, accurate mitres. Integral transoms and mullions are scribed around the outer frames and fixed with either screw ports or shear blocks. A proprietary sealant is used on all metal joints in line with good practice. Opening window frames are designed to be inserted into the outer frames using butt hinges.

Senior Architectural Systems is fully compliant with BS EN ISO 9001, BS EN ISO 14001, ISO 45001 and BES6001 standards.

When used on projects involved in a BREEAM assessment, or within the Code for a Sustainable Built Environment, (which therefore involves the Green Guide specification) can offer significant benefits. For project specific assistance, please contact our specification team.
